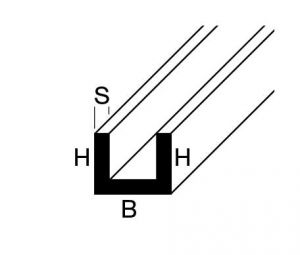

U-Profil
gepresst, Werkstoff AlMgSi 0,5 F22 (EN AW-6060 T 66) EN 573-3, 755-1/-2/-9, Profillänge: 6000 mm, auch als Zuschnitt lieferbar!
| Art.Nr. | H / mm | B / mm | H / mm | S / mm | kg / m | Werkz. |
|---|---|---|---|---|---|---|
| UP101010 | 10 | 10 | 10 | 2 | 0,14 | xxx. |
| UP1245.5122.5 | 12 | 45,5 | 12 | 2,5 | 0,44 | x. |
| UP1312132 | 13 | 12 | 13 | 2 | 0,19 | xx. |
| UP1515152 | 15 | 15 | 15 | 2 | 0,23 | . |
| UP1520152 | 15 | 20 | 15 | 2 | 0,25 | x. |
| UP1525152 | 15 | 25 | 15 | 2 | 0,28 | x. |
| UP1530152 | 15 | 30 | 15 | 2 | 0,31 | . |
| UP1614162 | 16 | 14 | 16 | 2 | 0,23 | xx. |
| UP2020201.5 | 20 | 20 | 20 | 1,5 | 0,25 | xxx. |
| UP2020202 | 20 | 20 | 20 | 2 | 0,31 | . |
| UP2020203 | 20 | 20 | 20 | 3 | 0,46 | . |
| UP2025202 | 20 | 25 | 20 | 2 | 0,33 | . |
| UP2030202 | 20 | 30 | 20 | 2 | 0,38 | . |
| UP2035202 | 20 | 35 | 20 | 2 | 0,39 | x. |
| UP2040202 | 20 | 40 | 20 | 2 | 0,41 | . |
| UP2040202.5 | 20 | 40 | 20 | 2,5 | 0,51 | . |
| UP2050202 | 20 | 50 | 20 | 2 | 0,47 | . |
| UP2060202 | 20 | 60 | 20 | 2 | 0,52 | . |
| UP2080202 | 20 | 80 | 20 | 2 | 0,63 | . |
| UP20120202.5 | 20 | 120 | 20 | 2,5 | 1,05 | . |
| UP2323231.5 | 23 | 23 | 23 | 1,5 | 0,27 | xx. |
| UP2520252 | 25 | 20 | 25 | 2 | 0,36 | . |
| UP2525252 | 25 | 25 | 25 | 2 | 0,39 | . |
| UP2525253 | 25 | 25 | 25 | 3 | 0,56 | . |
| UP2535252 | 25 | 35 | 25 | 2 | 0,44 | x. |
| UP2565252.5 | 25 | 65 | 25 | 2 | 0,44 | x. |
| UP3020302 | 30 | 20 | 30 | 2,5 | 0,73 | . |
| UP3030302 | 30 | 30 | 30 | 2 | 0,49 | . |
| UP3030303 | 30 | 30 | 30 | 3 | 0,68 | . |
| UP3040303 | 30 | 40 | 30 | 3 | 0,77 | . |
| UP3040304 | 30 | 40 | 30 | 4 | 1,06 | . |
| UP3050302 | 30 | 50 | 30 | 2 | 0,58 | . |
| UP3050303 | 30 | 50 | 30 | 3 | 0,85 | . |
| UP3060303 | 30 | 60 | 30 | 3 | 0,93 | xx. |
| UP3080303 | 30 | 80 | 30 | 3 | 1,09 | . |
| UP3535352 | 35 | 35 | 35 | 2 | 0,57 | . |
| UP3570353 | 35 | 70 | 35 | 3 | 1,10 | x. |
| UP4020402.5 | 40 | 20 | 40 | 2,5 | 0,65 | . |
| UP4030403 | 40 | 30 | 40 | 3 | 0,85 | . |
| Up4040402.5 | 40 | 40 | 40 | 2,5 | 0,78 | . |
| UP4040403 | 40 | 40 | 40 | 3 | 0,93 | . |
| UP4040404 | 40 | 40 | 40 | 4 | 1,22 | . |
| UP4050404 | 40 | 50 | 40 | 4 | 1,32 | xxx. |
| UP4050405 | 40 | 50 | 40 | 5 | 1,62 | . |
| UP4060402.5 | 40 | 60 | 40 | 2,5 | 0,92 | . |
| UP4060403 | 40 | 60 | 40 | 3 | 1,09 | . |
| UP4060404 | 40 | 60 | 40 | 4 | 1,43 | x. |
| UP4080403 | 40 | 80 | 40 | 3 | 1,25 | . |
| UP4080404 | 40 | 80 | 40 | 4 | 1,66 | xxx. |
| UP4086403 | 40 | 86 | 40 | 3 | 1,30 | . |
| UP4090403 | 40 | 90 | 40 | 3 | 1,33 | . |
| UP40100403 | 40 | 100 | 40 | 3 | 1,409 | . |
| UP40106403 | 40 | 106 | 40 | 3 | 1,46 | . |
| UP40120403 | 40 | 120 | 40 | 3 | 1,62 | . |
| UP40140403 | 40 | 140 | 40 | 3 | 1,73 | . |
| UP40200403 | 40 | 200 | 40 | 3 | 2,22 | xx. |
| UP4555452 | 45 | 55 | 45 | 2 | 0,76 | . |
| UP5030503 | 50 | 30 | 50 | 3 | 1,01 | . |
| UP5050503 | 50 | 50 | 50 | 3 | 1,07 | . |
| UP5050504 | 50 | 50 | 50 | 4 | 1,54 | . |
| UP5050505 | 50 | 50 | 50 | 5 | 1,94 | . |
| UP5060502 | 50 | 60 | 50 | 2 | 0,87 | . |
| UP5060503 | 50 | 60 | 50 | 3 | 1,25 | xx. |
| UP5080303 | 50 | 80 | 50 | 3 | 1,41 | . |
| UP5080505 | 50 | 80 | 50 | 5 | 2,23 | . |
| UP5090503 | 50 | 90 | 50 | 3 | 1,49 | . |
| UP50100505 | 50 | 100 | 50 | 5 | 2,57 | . |
| UP5565552.5 | 55 | 65 | 55 | 2,5 | 1,15 | . |
| UP6060603 | 60 | 60 | 60 | 3 | 1,41 | . |
| UP6060605 | 60 | 60 | 60 | 5 | 2,30 | xx. |
| UP6080605 | 60 | 80 | 60 | 5 | 2,57 | x. |
| UP60120608 | 60 | 120 | 60 | 8 | 4,84 | . |
| UP6540652 | 65 | 40 | 65 | 2 | 0,89 | . |
| UP8080804 | 80 | 80 | 80 | 4 | 2,60 | xxx. |
